• Model NO.：Automatic Soap Dispenser PG-SD-001P
• Automation：Automatic
• Model No.：Soap Dispenser Pg-SD-001p
• Input Voltage：DC 6V
• Power Consumption：1.8W @ 300mA
• Standby Current：300ua
• Material of Disinfection Sprayer：ABS
• Finishing Color：White Cover + Light Blue Tank
• Mechanical Dimension：95mm (L)*95mm(W)*190mm(H)
• Tank Capacity：600ml
• Support Liquid：Liquid Soap,Shampoo,Detergent,Disinfectant
• Infrared Sensing Distance：≤12cm
• Volume of Each Dispensation：1ml
• Dispensation Level：3 Levels
• Power Supply：4 * AAA Battery
• Transport Package：Box with Export Carton
• Specification：Automatic Soap Dispenser PG-SD-001P
• Trademark：Phigor
• Origin：Ningbo
• HS Code：8413810090
• Production Capacity：6000

Basic Info.

Model NO. Automatic Soap Dispenser PG-SD-001P Automation Automatic Model No. Soap Dispenser Pg-SD-001p Input Voltage DC 6V Power Consumption 1.8W @ 300mA Standby Current 300ua Material of Disinfection Sprayer ABS Finishing Color White Cover + Light Blue Tank Mechanical Dimension 95mm (L)*95mm(W)*190mm(H) Tank Capacity 600ml Support Liquid Liquid Soap/Shampoo/Detergent/Disinfectant Infrared Sensing Distance ≤12cm Volume of Each Dispensation 1ml Dispensation Level 3 Levels Power Supply 4 * AAA Battery Transport Package Box with Export Carton Specification Automatic Soap Dispenser PG-SD-001P Trademark Phigor Origin Ningbo HS Code 8413810090 Production Capacity 6000

Product Description

 Automatic Soap Dispenser PG-SD-001PBrief Introduction
Automatic soap dispenser also named as sensor activated soap dispenser allow touch-free delivery eliminating cross-contamination. This wall-mounted automatic soap dispenser PG-SD-001P is easy to setup and maintenance, and you can fill it with liquid soap, shampoo, detergent and disinfectant.
Feature

• Non-contact with your hands and dispense automatically, which provides you a sanitary and touch-free experience.
• Easy to install. Use the wall mounting screws or adhesive punch-free sticker.
• Support liquid soap, shampoo, detergent and disinfectant.
• 600ml large tank last for a long time.
• Low power consumption. 4 * AAA battery (not include) can standby for a long time.
• Easy to use. Switch the device on by press the red button on the bottom of the device and the LED indicate Red, the default volume is first level. Long press the red button to turn off the device, LED indicate red. There are three levels of dispensation volume and you can press the red button to adjust.
• Easy to refill. Almost transparent tank easy for you to check the left volume. Use the key to open the cover of the device, and refill the liquid soap or disinfectant.
• Security key: prevent damage caused by tempering or vandalism; improve the lifespan of the automatic soap dispenser.

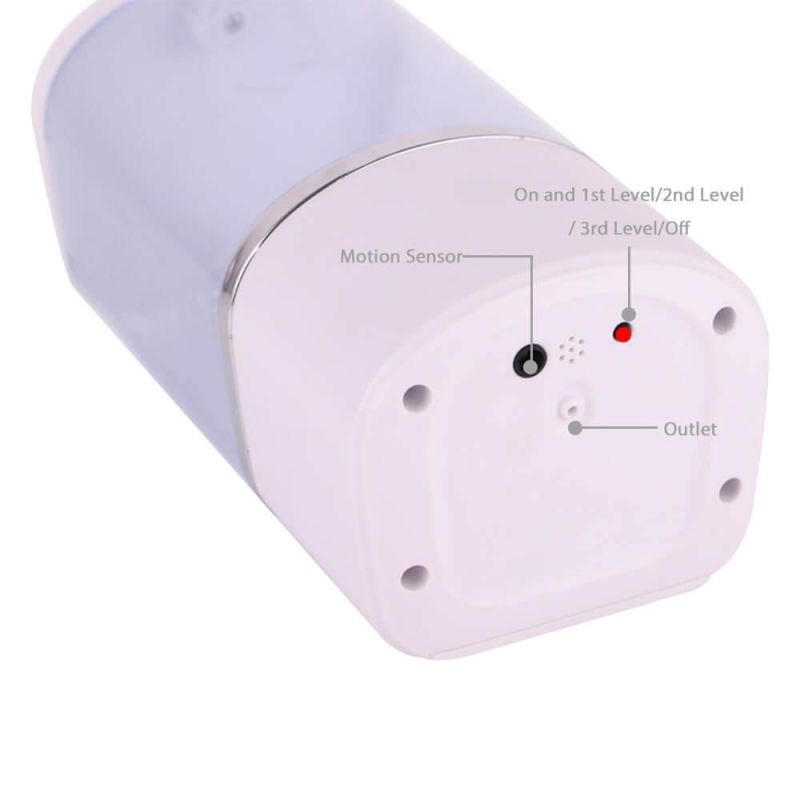

      Suitable for household, restaurant, school, hotel, factory, washroom, restroom, supermarket, etc.Push Button Direction

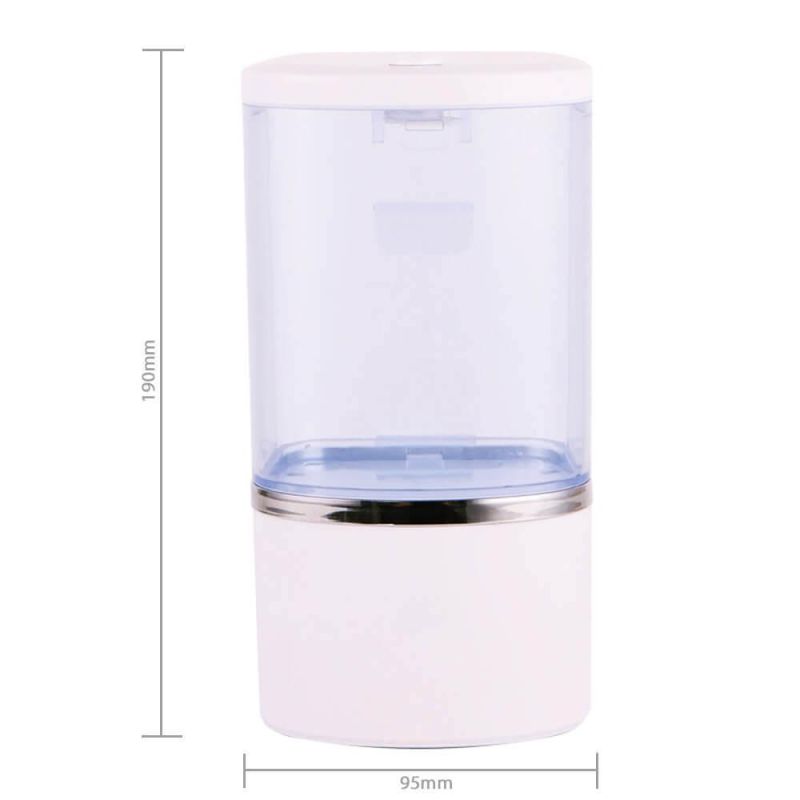

Mechanical Dimensions

Parameter


Model No.	Automatic Soap Dispenser PG-SD-001P
Input Voltage	DC 6V
Power Consumption	1.8W @ 300mA
Standby Current	300uA
Material of Disinfection Sprayer	ABS
Finishing Color	White Cover + Light Blue Tank
Mechanical Dimension	95mm (L)*95mm(W)*190mm(H)
Tank Capacity	600ml
Support Liquid	Liquid Soap/Shampoo/Detergent/Disinfectant
Infrared Sensing Distance	≤12cm
Volume of Each Dispensation	1ml
Dispensation Level	3 Levels
Power Supply	4 * AAA Battery
Battery	Not Include
Accessories	Wall Mounting Screws and Mounts, security key, User Manual
Weight	320g

Application
This automatic soap dispenser perfect to use at bathrooms, kitchens, office, school, hospital, hotel and restaurant Decorative homes and restrooms, Toilet, Hotel, Clear Chamber, Deck Mounted, Restaurants, Coffee Bar, Bathroom, Kitchen, supermarket, etc.
